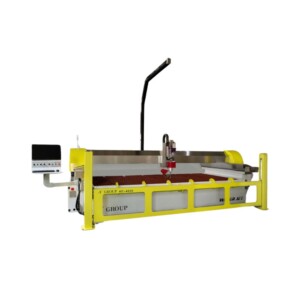

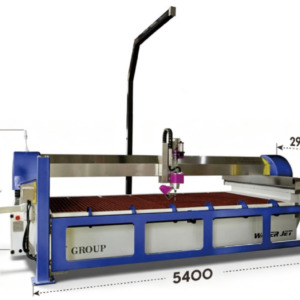

AC Water Jet W4020
The AC Water Jet W4020 is a cutting-edge, high-performance water jet cutting machine specialising in intricate and demanding of stone processing. Designed to deliver unmatched precision and versatility, AC Stone’s 4020 model is ideal for cutting, engraving, and shaping a wide variety of stone materials. With its robust construction and advanced technology, the AC Stone Water Jet 4020 is at the same time extremely user friendly, setting a new standard in the stone industry, ensuring superior results for both small-scale and large-scale production.
*Automatic Garnet Removal System available at an additional cost*
| Model | AC-4020 |
|---|---|
| Structure Type | Gantry |

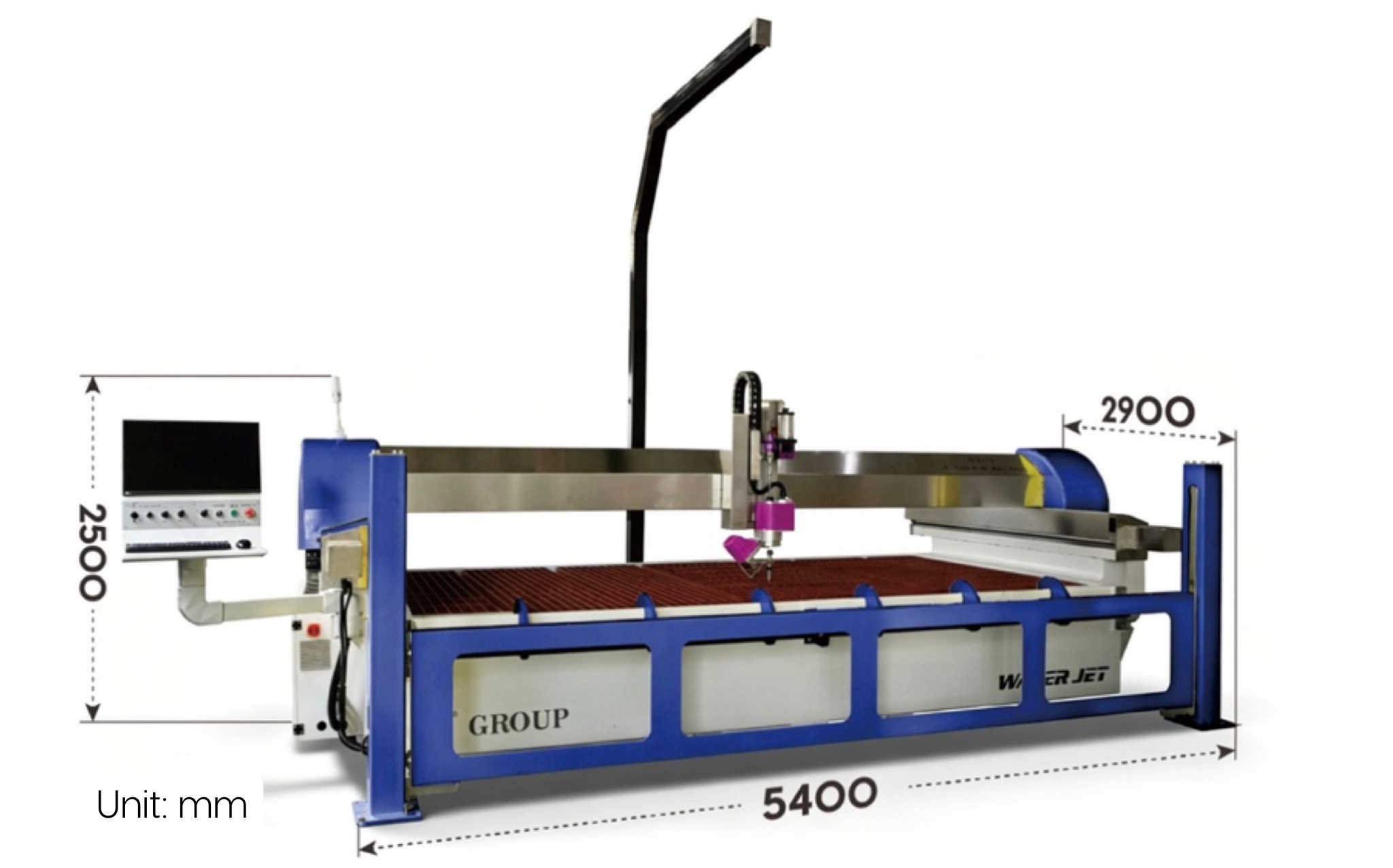

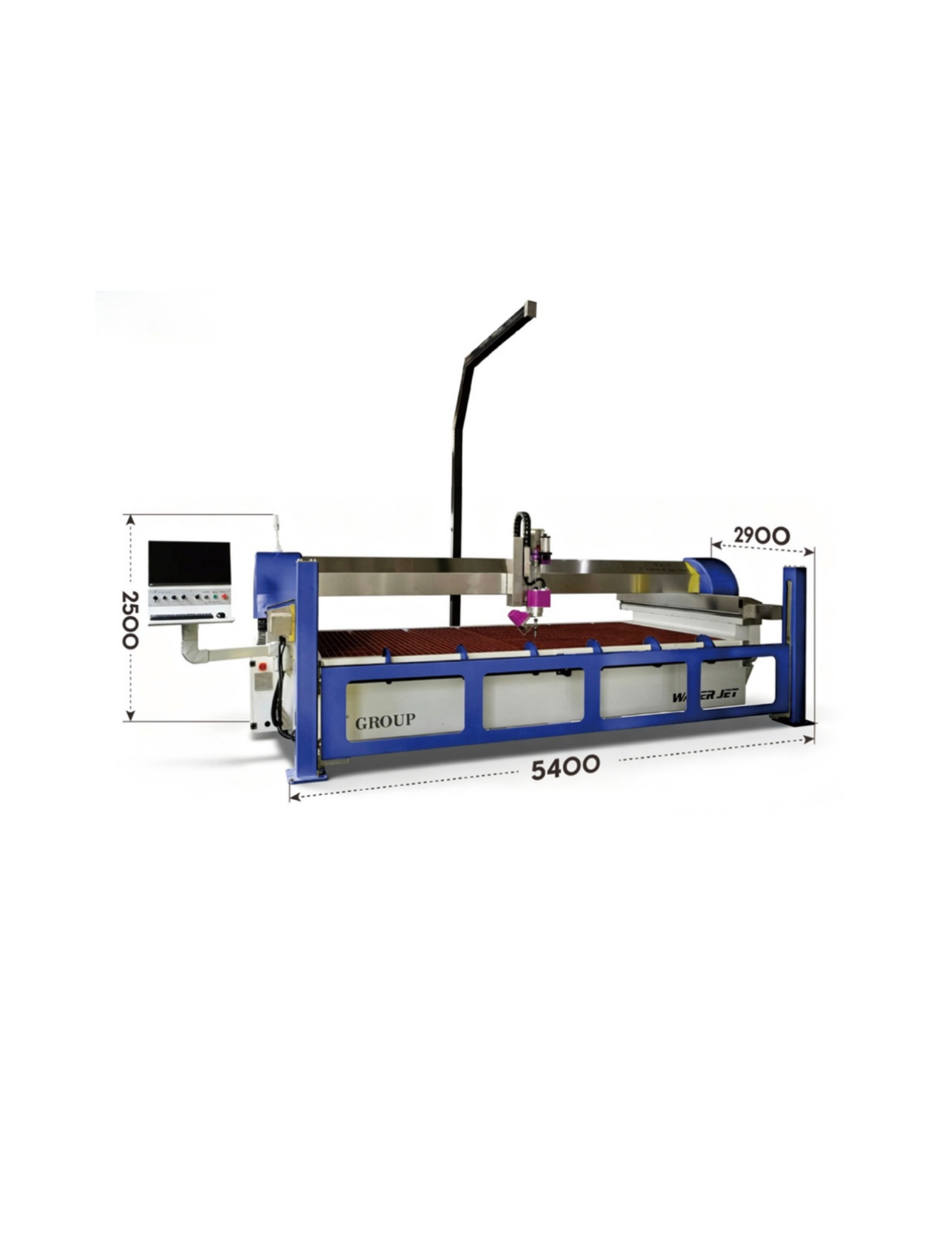

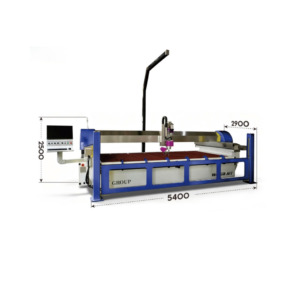

| Cutting Platform Dimensions | 5.4m x 2.9m x 2.5m |
| CNC Controller | AC Servo System |
| Cutting Precision | ± 0.1mm |
| Dimension of Cutting Platform | 5.4 x 2.9 x 2.5 m |
| Repeat Positioning Accuracy | ± 0.1mm |
| Power Supply | 415V 50/60Hz |
| Total Power | 45KW |
| Vertical Cutting Travel | X-Axis: 3900mm |
| Resetting | ± 0.1mm |
| Vertical Maximum Machining Size | 45◦ maximum machining size |
| Z-axis | 1900mm |
| 45° Bevel Cutting Travel | X-axis: 3800mm |
| C-axis | Free Rotation |
| Integrated Camera | Included |
| Protective Safety Door | Included |
