AC 5-Axis Plus Bridge Saw-350
The AC 5-Axis Plus Bridge Saw-350 by AC Stone is engineered to deliver precision, power, and efficiency, making it an essential tool for professionals in the stone industry. The AC 5-Axis Plus Bridge Saw-350 offer a tilting table and rotating head. Its advanced features and robust design ensure high productivity while reducing material waste, saving you both time and money. Whether you’re cutting thick slabs or delicate tiles, this bridge saw offers versatility and performance you can count on.
Software: The AC Stone Bridge Saw is supplied MDI software with the support of CAD induation specifically designed to provide precise control over CNC machines for enhanced efficiency and accuracy.
| Programming Method01 | MDI |
|---|---|
| Programming Method02 | CAD Import |
| Control System | CNC |
| Main Spindle Power | 11kw |
| Spindle Speed | 1500-6000r/mim |
| Voltage | 415v/50hz |
| X-Axis Travel | 3500mm |
| Y-Axis Travel | 2000mm |
| Z-Axis Travel | 350mm |
| A-Axis Travel | 360° free rotation |
| B-Axis Travel | 0-90° Bevelling |
| Straight Cutting Area | 3500 x 2000mm |
| Bevel Cutting Area | 3200 x 1900mm |
| Cutting Thickness | 100mm |
| Processing Accuracy | ±0.2 mm |
| High-Speed Milling Motor | 5.5KW |
| Worktable Size | 3500 x 2000mm |
| Rotating Worktable | Included |
| Camera Function | Included |
| Safety Door | Laser Door |

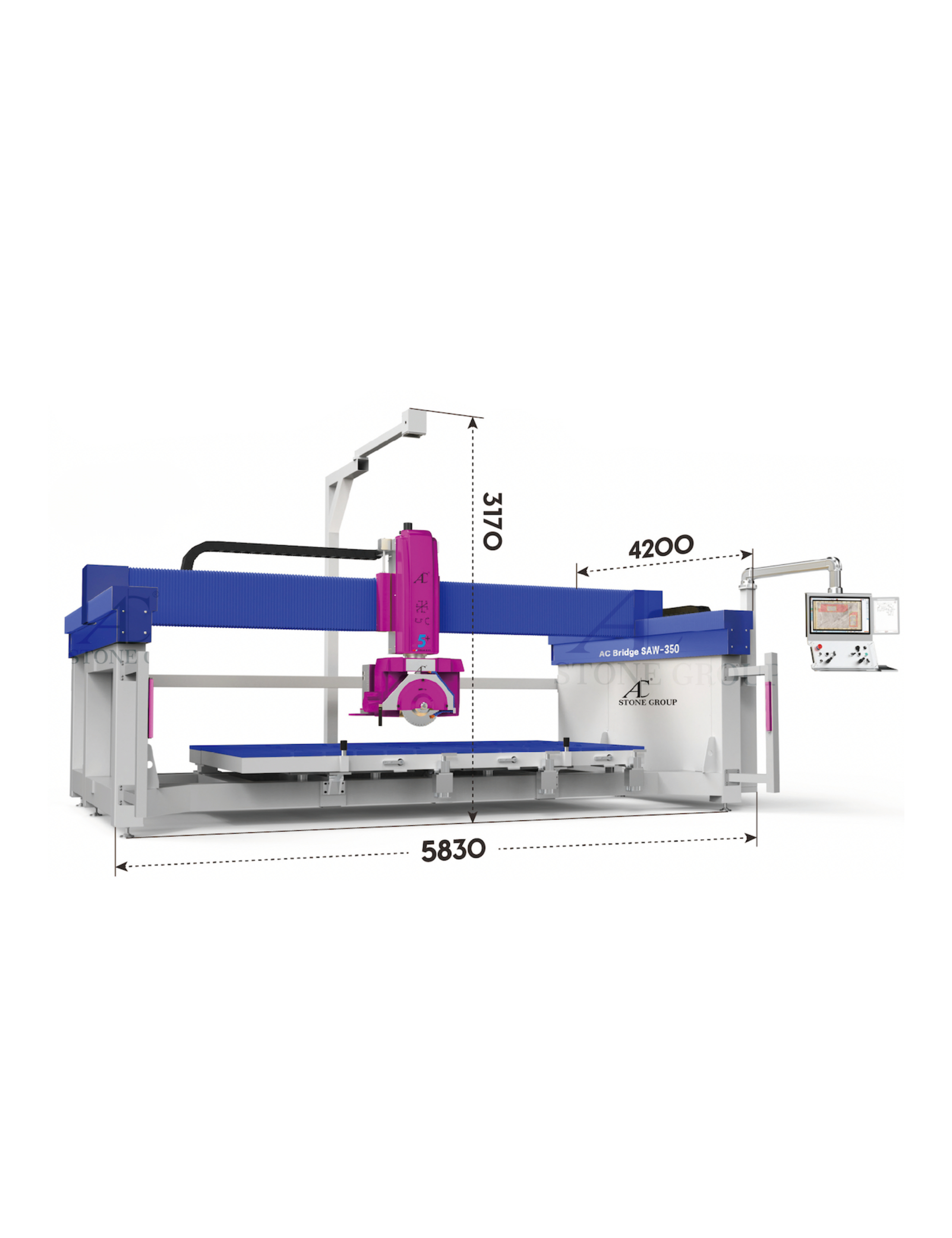

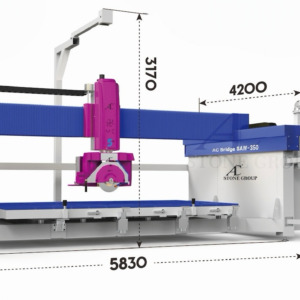

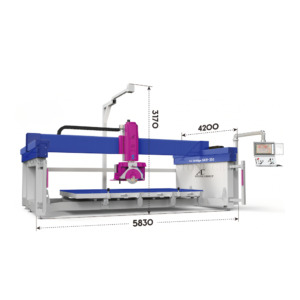

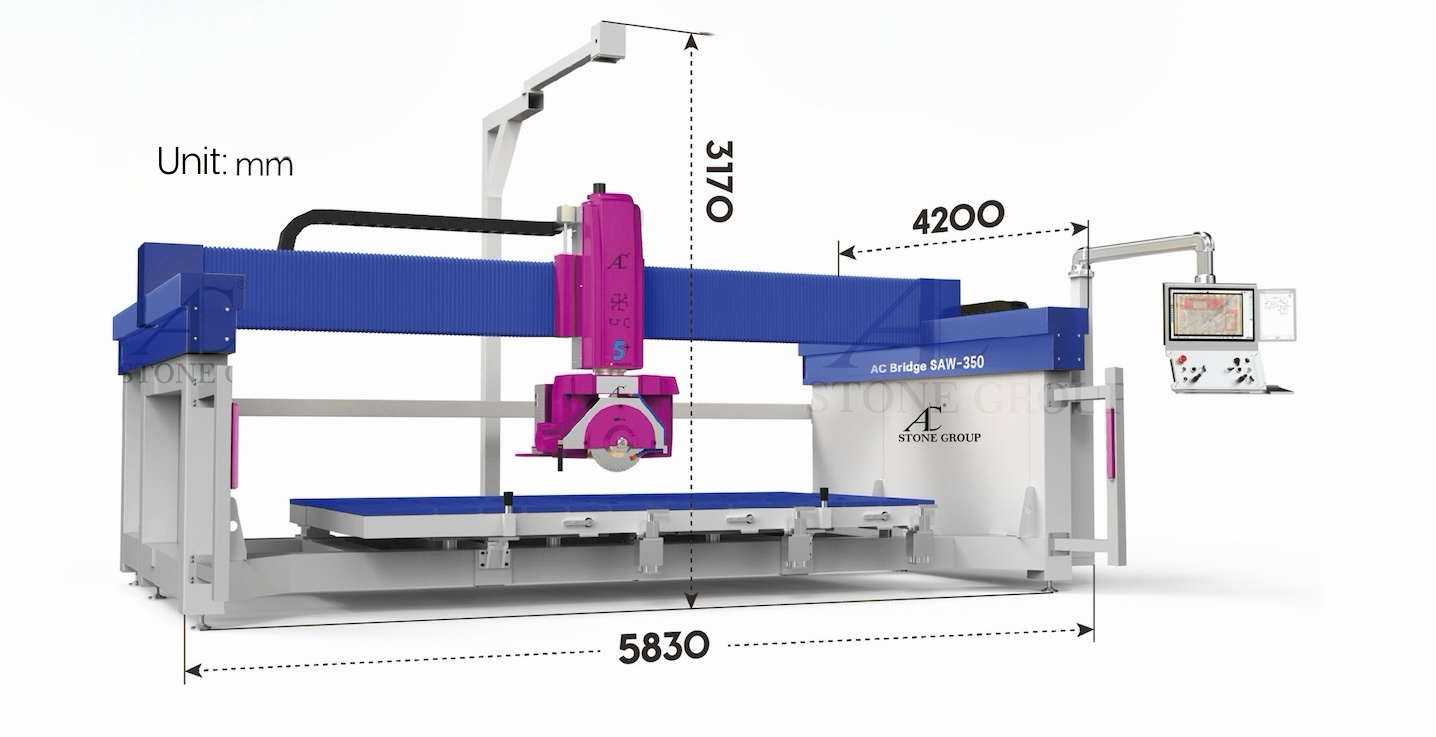

| Overall Dimensions (L x W x H) | 5830 x4200 x 3170mm |
| Weight | 4600kg |
